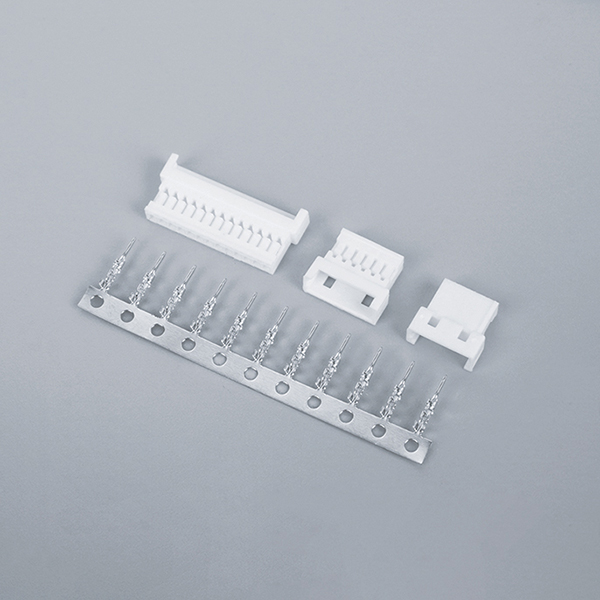

1.25-AS(1.25mm) Connector

Series: 1.25 series connectors

Pitch: 1.25mm

Material: LCP or PA/ Phosphor Bronze

Cable Size (AWG): 32#~28#

Current (A): 1.0 A

Voltage (V): 125V AC, DC

Introducing the 1.25mm Connector – a reliable and efficient solution for your Wire-to-Wire Connector needs. In the realm of electronic connectors, the 1.25mm Connector stands out as a practical and functional component, designed with a focus on precision and versatility. With a pitch of 1.25mm, this connector is engineered to provide a seamless connection between wires, ensuring a stable and secure link in various applications.

Design and Construction:

The 1.25mm Connector is crafted with meticulous attention to detail, featuring a pitch that ensures seamless wire-to-wire connections. The connector is constructed using high-quality materials, with options such as Liquid Crystal Polymer (LCP) or Polyamide (PA) for the housing and Phosphor Bronze for the contact material. This thoughtful selection of materials ensures durability and resilience in diverse operating conditions.

Compatibility and Cable Size:

Designed to accommodate a range of cable sizes, the 1.25mm Connector supports wires ranging from 32 to 28 AWG. This versatility allows for flexibility in designing electronic systems, ensuring compatibility with a wide array of devices and applications.

Electrical Specifications:

The 1.25mm Connector boasts a reliable electrical performance, with a current rating of 1.0 A and a voltage rating of 125V AC/DC. These specifications make it suitable for a variety of low-power applications where consistent and stable electrical connections are essential.

Applications:

The 1.25mm Connector finds its niche in Wire-to-Wire connections, playing a role in various applications across different industries. Some notable applications include:

Consumer Electronics:

The compact size and reliable performance of the 1.25mm Connector make it a good choice for use in consumer electronics. It can be integrated into devices such as smartphones, tablets, cameras, and audio equipment, ensuring seamless wire-to-wire connections in compact and sophisticated electronic designs.

Automotive Electronics:

In the automotive industry, where space is often limited, the 1.25mm Connector proves invaluable. It can be utilized in automotive electronics, providing a reliable solution for wire-to-wire connections in systems such as sensors, lighting, and control modules.

Medical Devices:

Precision and reliability are important in medical devices, and the 1.25mm Connector meets these requirements. It can be employed in various medical applications, including diagnostic equipment, patient monitoring devices, and portable medical instruments.

Industrial Automation:

Industrial automation systems demand robust and dependable connectors. The 1.25mm Connector finds its place in these environments, ensuring secure wire-to-wire connections in control panels, sensors, and other automation components.

Communication Systems:

In the realm of communication systems, where data transmission is critical, the 1.25mm Connector provides a reliable solution. It can be utilized in networking equipment, data storage devices, and other communication systems where precision and consistency are essential.

In conclusion, the 1.25mm Connector emerges as a reliable and practical choice for Wire-to-Wire connections. With its precision design, versatile cable size compatibility, and robust electrical specifications, it addresses the connectivity needs of various industries. From consumer electronics to automotive applications, medical devices, industrial automation, and communication systems, the 1.25mm Connector proves to be a component for achieving consistent and secure wire-to-wire connections in diverse electronic systems.
