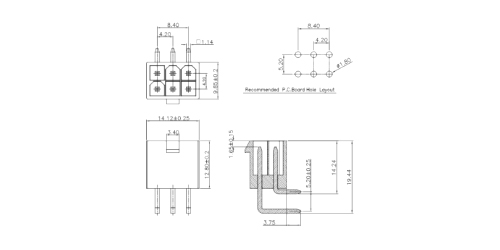

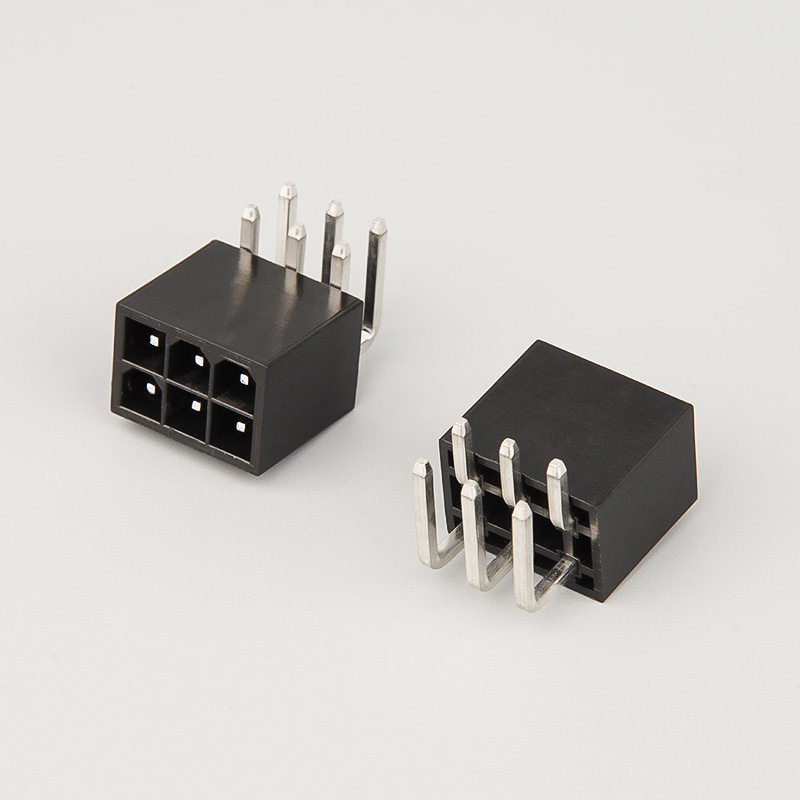

5569-2*3AW-B PA66 4.2mm Pitch Wire-to-Board Connector

Material: PA66 UL94 V-0

Pitch: 4.2mm

PIN: 2X2-2X12P

Temperaturerange: -25℃c~85℃C

Current rating: 5.0 A

Rated voltage: 250V AC/DC

Temperature range: -25ºC~+8

Contact: Brass; T=1.1mm; Finish: Tin plating , over Nickel plated.

Harmful Material Should Be Compliant to Doc. “RoHS、REACH.” Standards.

The PA66 UL94 V-0 4.2mm Pitch Wire-to-Board Connector is a high-performance electrical connector designed to provide reliable connections between wires and printed circuit boards (PCBs).

This connector features a 4.2mm pitch, suitable for medium to high current applications, and is made from PA66, a thermoplastic material known for its excellent mechanical strength and thermal stability. With a UL94 V-0 flame retardant rating, it is well-suited for applications requiring high safety and environmental resistance.

Key Features

High Current Carrying Capacity

The 4.2mm pitch allows for larger conductor sizes, enabling the connector to handle moderate to high currents. This makes it suitable for industrial, automotive, and power supply applications.

Flame Retardant Material

The housing is constructed from PA66 material that meets the UL94 V-0 standard for flame retardancy. This ensures enhanced safety by providing self-extinguishing properties in case of fire.

Reliable Electrical Performance

Low Contact Resistance: Optimized terminal design ensures efficient electrical conductivity and minimal power loss.

Secure Mating: Features such as locking mechanisms and tight terminal fits enhance connection reliability.

Durability

PA66 material offers high tensile strength, making the connector resistant to mechanical stress and vibrations.

Excellent resistance to wear and fatigue ensures a long operational life even in demanding environments.

Easy Assembly

The plug-and-play design allows for quick and error-free installation.

Polarized housing and keyed connectors prevent incorrect mating.

Versatile Design

The connector is available in multiple configurations, including various pin counts, to accommodate different application needs. It supports a range of wire gauges, offering flexibility in design.

Environmental Resistance

Temperature Tolerance: Operates effectively over a wide temperature range due to the thermal stability of PA66.

Moisture and Chemical Resistance: The material's inherent properties provide protection in harsh environments.

Compliance with Industry Standards

Flame retardancy certified under UL94 V-0.

Designed to meet RoHS requirements, ensuring environmental sustainability.

Applications

Consumer Electronics

Widely applied in home appliances, power supplies, and other electronic devices requiring safe and efficient wire-to-board connections.

Renewable Energy

Used in solar inverters, battery storage systems, and other renewable energy equipment requiring high current and environmental resistance.

LED Lighting

Enables connections in LED modules and drivers, supporting energy-efficient lighting solutions.

Selection Considerations

When choosing a PA66 UL94 V-0 4.2mm Pitch Wire-to-Board Connector, consider the following factors:

Current and Voltage Ratings: Ensure the connector meets the application's electrical requirements.

Pin Configuration: Select the appropriate pin count for the specific PCB layout.

Operating Environment: Verify the material's compatibility with environmental conditions such as temperature, humidity, and exposure to chemicals.

Safety Standards: Ensure the connector meets necessary compliance standards for the intended application.
