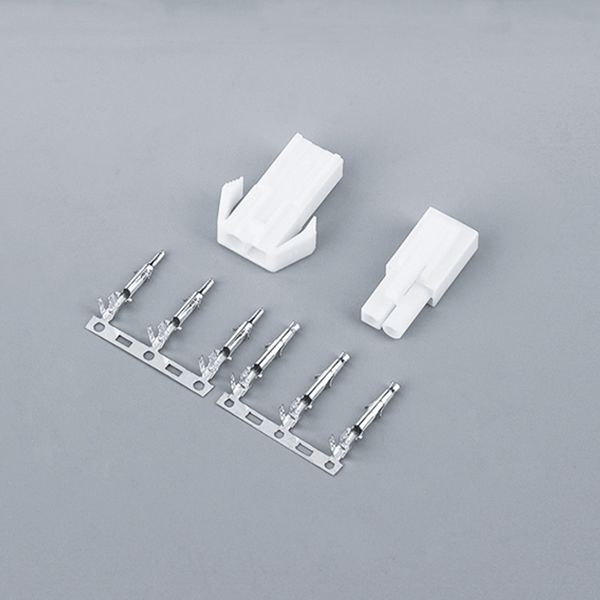

Series: EL series connectors
Pitch: 4.5mm
Material: Nylon/ Phosphor Bronze
Cable Size (AWG): 26#~16#
Current (A): 10 A
Voltage (V): 300V AC, DC
In the realm of electrical connectivity, precision and reliability are important. We understand the critical role connectors play in ensuring seamless communication and power distribution across various applications. That's why we are pleased to present the EL (4.5mm) Series Wire-to-Wire Connector – a solution designed with a meticulous focus on functionality and ease of use.
Contact Installation:
One of the standout features of the EL Series Connector is its ease of insertion and secure installation of contacts. Each connector is meticulously crafted with contacts that boast a pair of locking lances. These lances are strategically placed to allow symmetric locking within the housing. Furthermore, a retraction mechanism is seamlessly integrated, providing an additional layer of security by ensuring the contacts remain firmly held within the housing.
Positive Locking Mechanism and Durable Arm Lock Mechanism
Reliability is the cornerstone of any quality connector. The EL Series Connector incorporates a positive locking mechanism that enhances the stability of the connection. This ensures that once connected, the components stay securely in place, reducing the risk of accidental disconnection. Additionally, a durable arm lock mechanism further reinforces the structural integrity of the connector, contributing to its robust design and long-lasting performance.
Fully Polarized Key Feature with Latching Orientation
In the pursuit of enhanced functionality, the EL Series Connector introduces a polarized key feature with latching orientation. This design not only simplifies the installation process but also ensures that mating connectors align seamlessly, reducing the likelihood of errors during assembly. The latching orientation adds an extra layer of assurance, making it easier for users to achieve a reliable and error-free connection.
Two Contact Styles for Enhanced Flexibility
Recognizing the diverse needs of our users, the EL Series Connector offers two distinct crimp contact styles. This feature provides users with the flexibility to choose between options that cater to specific requirements, whether it be convenient branching or internal jumpering. This thoughtful design ensures that the connector can adapt to a variety of applications, adding a layer of versatility to its functionality.
Easy, Fast Panel Mount with Multiple Options for Panel Thicknesses
In the realm of practicality, the EL Series Connector excels in providing an easy and fast panel mount experience. The connector is designed with multiple options for panel thicknesses, allowing users to seamlessly integrate it into their systems without the need for complex modifications. This user-friendly approach to panel mounting enhances the overall convenience of incorporating the EL Series Connector into diverse applications.
In conclusion, the EL (4.5mm) Series Wire-to-Wire Connector stands as a testament to our commitment to delivering reliable and functional connectivity solutions. From its meticulous contact installation design to the thoughtful inclusion of a positive locking mechanism and fully polarized key feature, every aspect of the connector is geared towards ensuring a seamless and secure connection. With two contact styles for enhanced flexibility and a panel mount design that prioritizes ease of use, the EL Series Connector is poised to meet the demands of various applications with efficiency and reliability.
