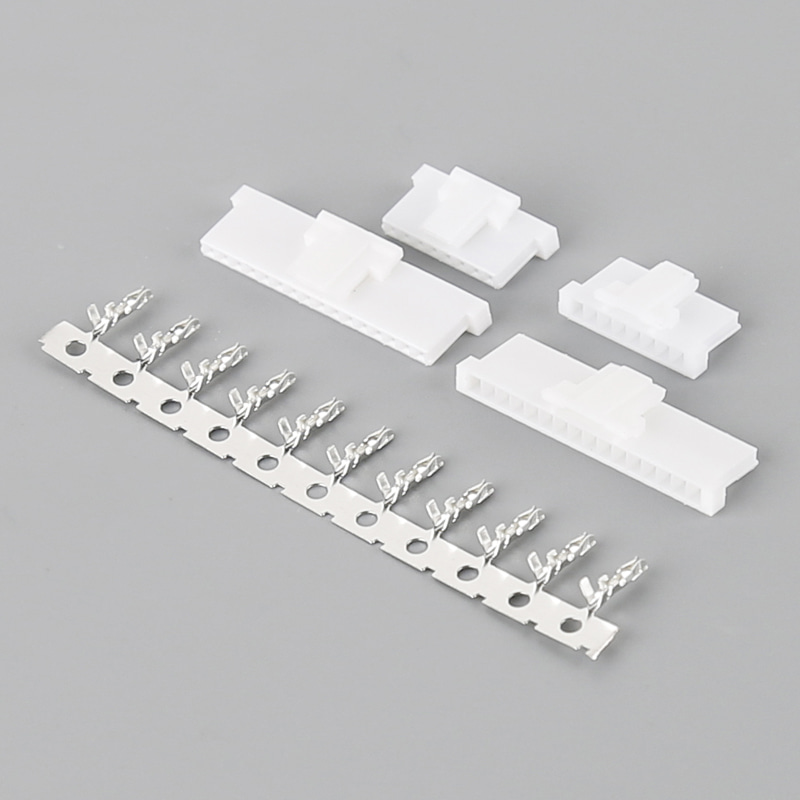

The DF14 Series Connector is engineered to provide secure and stable electrical connections with a minimal footprint. The 1.25mm pitch size ensures that this connector is suitable for densely packed electronic assemblies, making it ideal for applications requiring high-density interconnects. The connector’s design incorporates precision-engineered contacts and robust insulation materials to ensure long-lasting performance even in challenging environments.
Key Features
Compact Design:
Small Pitch: The 1.25mm pitch allows for a compact and space-saving design, which is essential in miniaturized electronics where board space is limited.
Low Profile: The low profile of the DF14 Series contributes to a sleek and unobtrusive appearance in end-use applications, enhancing both functionality and aesthetics.
High Durability:
Robust Construction: Constructed with high-quality materials, the DF14 Series Connector withstands mechanical stress and ensures long-term durability.
Reliable Contacts: Precision-engineered contacts provide stable electrical connections, reducing the risk of intermittent failures and ensuring reliable performance over time.
Versatile Applications:
Wide Range of Uses: This connector is suitable for various domestic applications,such as vacuum cleaner,air-conditioner ,washing machines and so on.
Adaptability: The DF14 Series is designed to accommodate different wiring configurations, making it versatile enough to meet a broad spectrum of connection needs.
Ease of Use:
Simple Assembly: The DF14 Connector is designed for straightforward integration into electronic assemblies, simplifying the assembly process and reducing labor costs.
Compatibility: The connector’s design ensures compatibility with various board layouts and wire configurations, enhancing its flexibility in different applications.
High Performance:
Electrical Efficiency: With low contact resistance and high current-carrying capacity, the DF14 Series Connector ensures efficient electrical performance and minimal signal degradation.
Temperature Resistance: The connector’s materials are chosen to withstand a wide temperature range, ensuring reliable performance in diverse operating conditions.
Advantages
Space Efficiency: The 1.25mm pitch of the DF14 Series Connector allows for high-density mounting on printed circuit boards (PCBs), making it ideal for applications where space is constrained. This compact design helps maximize the available board area, allowing for more components to be integrated into a smaller footprint.
Enhanced Reliability: The use of high-quality materials and precision engineering in the DF14 Series Connector ensures that it maintains a stable and secure connection throughout its operational life. This reliability is crucial in applications where connection failure can lead to system malfunctions or downtime.
Cost-Effective Solution: Despite its high-performance capabilities, the DF14 Series Connector offers a cost-effective solution for high-density interconnect needs. Its design and manufacturing processes are optimized to deliver value without compromising on quality or performance.
Design Flexibility: The DF14 Connector supports various board-to-wire configurations, providing designers with the flexibility to use it in different types of electronic assemblies. This adaptability makes it a versatile choice for a wide range of applications.
Applications
The DF14 Series (1.25mm Pitch) Connector is highly adaptable and finds applications across various industries:domestic appliance.
DF14 Series provides reliable and compact connections that are essential for maintaining the functionality and performance of these devices.
