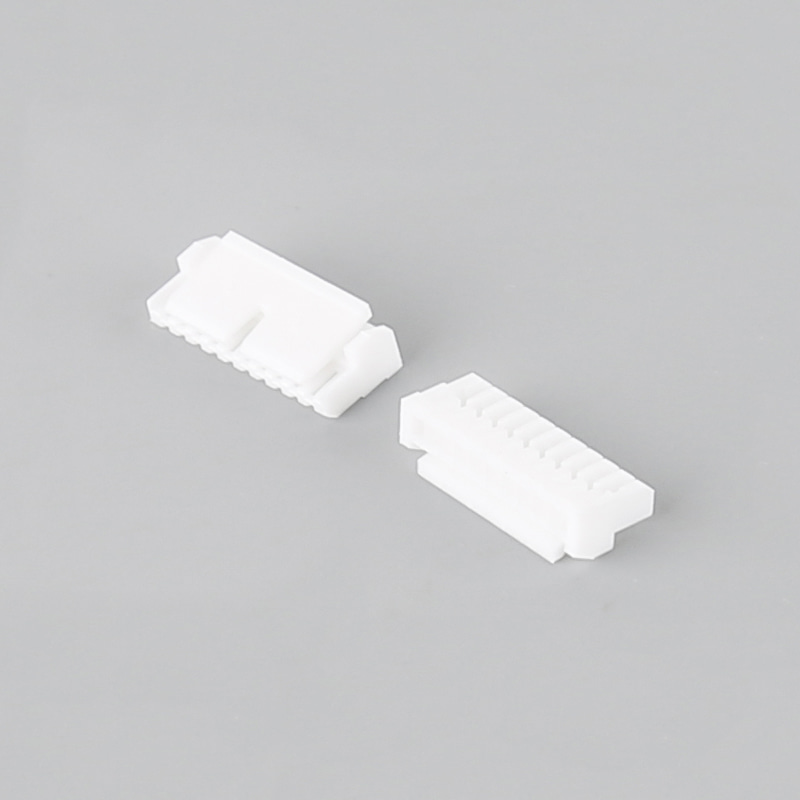

The GHD-NY (1.25mm Pitch) Connector features a compact design with a pitch of just 1.25mm, which is a key attribute that distinguishes it in the crowded marketplace of wire-to-board connectors. This narrow pitch allows for a high-density connection, facilitating the integration of multiple connections in limited space environments. The connector is meticulously designed to support various types of domestic applications.
Advantages
Compact Design
Space Efficiency: The 1.25mm pitch design enables the GHD-NY connector to offer high-density interconnect solutions, making it perfect for applications where space constraints are a significant concern.
Reduced Footprint: The small size of the connector minimizes the overall footprint on the PCB, allowing for more efficient use of board space and contributing to the overall compactness of the device.
High Reliability
Robust Connection: The connector is engineered for a secure and stable connection, reducing the risk of disconnections or signal interference. This reliability is essential for maintaining the performance and longevity of electronic devices.
Durability: The materials used in the GHD-NY connector are selected to withstand mechanical stress and environmental factors, ensuring long-term durability and consistent performance.
Ease of Use
Simple Assembly: The connector is designed for ease of use, with features that facilitate straightforward insertion and removal. This user-friendly design helps streamline the assembly process, reducing labor costs and assembly time.
Compatibility: The GHD-NY connector is compatible with a wide range of wire sizes and configurations, offering versatility in application and integration.
Key Features
Precision Engineering
High Pin Density: The 1.25mm pitch allows for high pin density, making it suitable for applications that require numerous connections in a small area. This precision is achieved through advanced manufacturing techniques and quality control processes.
Accurate Alignment: The connector features precise alignment mechanisms to ensure correct mating and reliable electrical connections, reducing the risk of misalignment and connection failures.
Electrical Performance
Low Resistance: The connector is designed to offer low electrical resistance, which helps in maintaining signal integrity and minimizing power loss across the connection.
High Conductivity: The materials used in the connector are chosen for their excellent conductivity, ensuring efficient transmission of electrical signals and minimizing signal degradation.
Mechanical Strength
Sturdy Construction: The connector’s robust construction ensures that it can endure mechanical stress and vibration, making it suitable for use in demanding environments.
Locking Mechanism: A secure locking mechanism is integrated into the connector to prevent accidental disconnections, ensuring a reliable and stable connection even in high-vibration applications.
Applications
The GHD-NY (1.25mm Pitch) Connector is versatile and finds application in various fields due to its compact size and reliable performance. Some common applications include:washing machines,dishwashers and so on.
