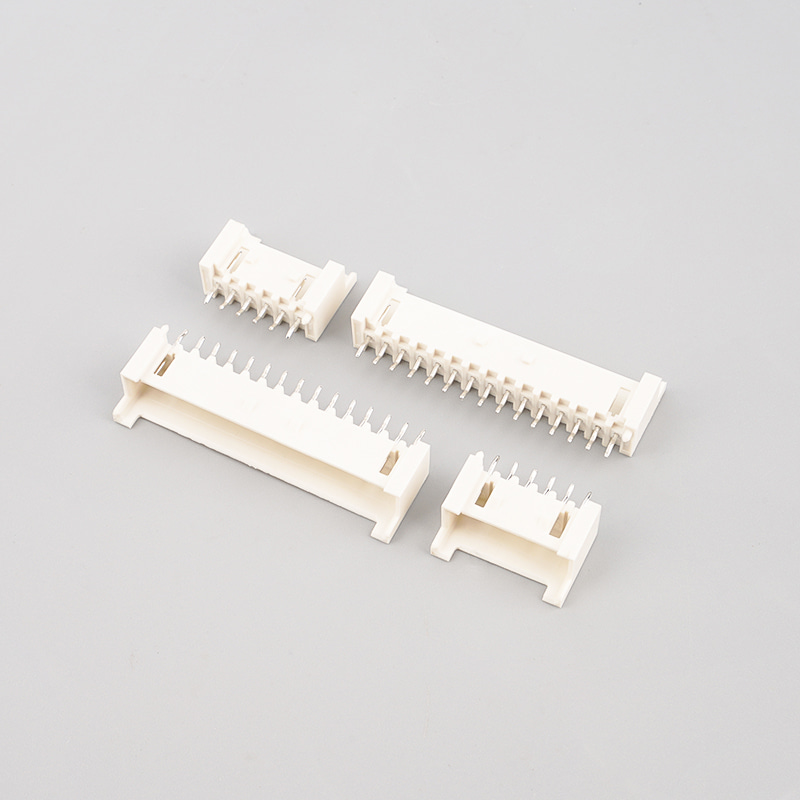

A2500-NA PA 2.5mm Pitch Wire-to-Board Connector

KL-A2500-NA-02-BE

Current Rating:3A

Insulation Resistance:1000MΩ Min.

Dielectric Withstanding:1000V AC

Contact Resistance:20 mΩ Max.

Operating Temperature:-25℃to +85℃

Materials:

Contact Material: Brass(Tin plating)

Insulation Material: PA UL94V-0/2

The A2500-NA PA 2.5mm Pitch Wire-to-Board Connector is a versatile and durable connector designed for applications requiring secure and efficient electrical connections between wires and printed circuit boards (PCBs). With a 2.5mm pitch, this connector strikes a balance between compact size and sufficient current-carrying capability. Made from PA (polyamide) material, it ensures robust mechanical strength and environmental resistance, making it a reliable choice for industrial, automotive, and consumer electronics applications.

Key Features

Optimized Pitch Design

The 2.5mm pitch provides a middle ground between compactness and electrical performance, making it suitable for applications where space is limited but current requirements are moderate.

Offers a good compromise between design flexibility and reliability.

High Electrical Performance

Low Contact Resistance: Ensures stable and efficient electrical conductivity with minimal power loss.

Current and Voltage Ratings: Capable of supporting moderate current levels, meeting the needs of diverse applications.

Durable Housing Material

Made from PA (Polyamide), which is known for its excellent mechanical properties, heat resistance, and flame retardance.

PA material ensures long-lasting performance even in high-stress environments.

Secure Mating System

Features a reliable locking mechanism that prevents accidental disconnection, ensuring a secure and stable connection under various operating conditions.

Polarized design ensures correct mating, reducing the risk of misalignment during installation.

Versatile Configurations

Available in a range of pin counts to accommodate different PCB layouts and wiring needs.

Supports multiple wire gauges, providing flexibility for different electrical designs.

Easy Assembly

A simple plug-and-play design facilitates quick and error-free installation.

Clear markings and orientation features assist in hassle-free assembly and maintenance.

Environmental Resistance

Resistant to heat, moisture, and chemicals, making it suitable for harsh environments.

Operates over a wide temperature range, ensuring reliability in both indoor and outdoor applications.

Industry Compliance

Meets RoHS (Restriction of Hazardous Substances) standards, ensuring it adheres to environmental safety requirements.
