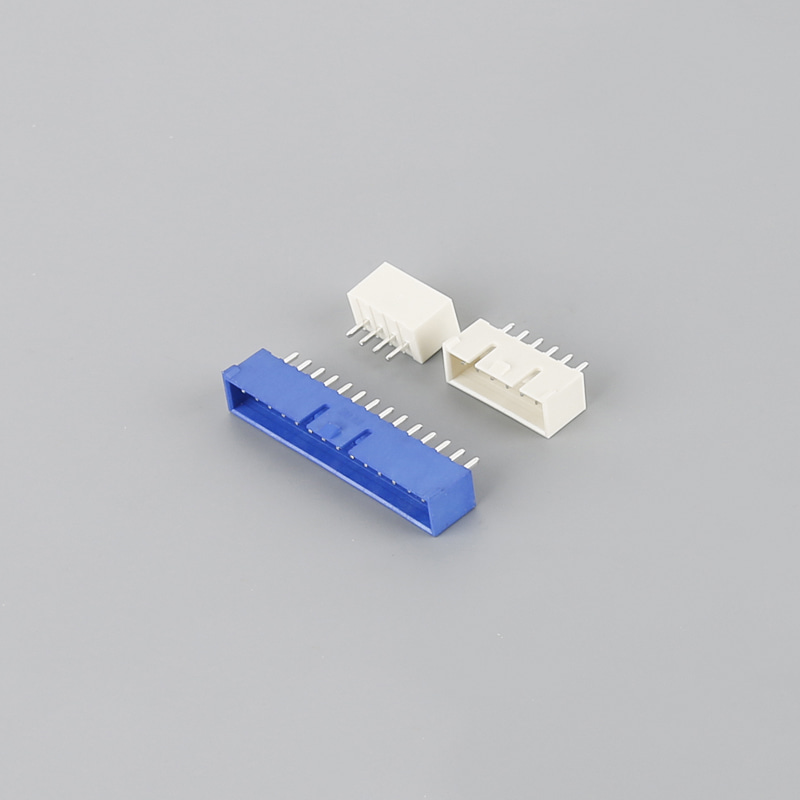

XHMS-A (2.5mm Pitch) Connector

The XHMS-A (2.5mm Pitch) Connector is engineered to meet the demanding requirements of modern electronic systems. It features a 2.5mm pitch, which denotes the center-to-center distance between the pins on the connector. This compact pitch size is ideal for applications where space is limited, allowing for a high-density arrangement of connections without compromising on performance.

Constructed from high-quality materials, the XHMS-A connector provides exceptional durability and reliability. The contacts are typically made from copper alloy with a gold or tin plating to enhance conductivity and resistance to corrosion. The connector housing is often molded from high-grade plastic, offering both mechanical strength and protection against environmental factors.

Key Advantages

Compact Design and High-Density Connectivity

Space Efficiency: The 2.5mm pitch allows for a compact footprint, making it suitable for applications with restricted space, such as portable devices and compact electronic modules.

High Pin Count: Despite its small size, the XHMS-A connector can accommodate a high number of pins, supporting complex wiring needs in a compact format.

Reliable Electrical Performance

Low Contact Resistance: The gold or tin-plated contacts ensure low contact resistance, which is essential for maintaining signal integrity and minimizing power loss.

Stable Connection: The connector’s design provides a stable and secure connection, reducing the risk of intermittent connections or disconnections, which is critical for the reliable operation of electronic systems.

Enhanced Durability

Resistance to Mechanical Stress: The robust design of the XHMS-A connector withstands mechanical stress and vibration, making it suitable for demanding environments.

Environmental Protection: The plastic housing protects the internal contacts from dust, moisture, and other environmental contaminants, ensuring long-term reliability.

Key Features

Precision Engineering

Accurate Pitch Alignment: The precise 2.5mm pitch ensures accurate alignment of the pins, facilitating proper mating and reducing the likelihood of misalignment issues.
High Manufacturing Tolerance: The connector is manufactured to stringent tolerances, ensuring consistent quality and performance across all units.

Versatile Applications

The XHMS-A connector is suitable for various domestic applications, including washing machines,dishwashers and  so on.
Customizable Options: The connector is available in various configurations and can be customized to meet specific application requirements, such as different pin counts or mounting options.

Ease of Use

User-Friendly Design: The connector features an easy-to-use design that simplifies the connection and disconnection process, reducing assembly time and effort.
Compatible with Standard Tools: The XHMS-A connector is compatible with standard crimping tools, making it convenient for manufacturers and assemblers.

The XHMS-A (2.5mm Pitch) Connector is an exemplary choice for those seeking a high-quality, reliable, and compact solution for wire-to-board connections. Its 2.5mm pitch design offers space efficiency and high-density connectivity, while its robust construction ensures durability and reliable electrical performance.
