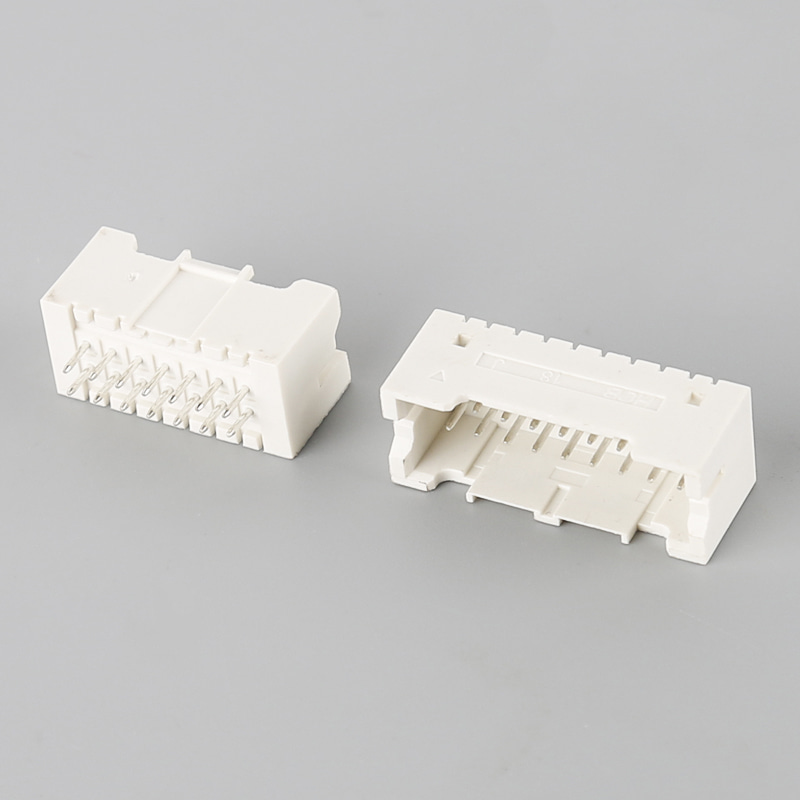

The XAD-2XNA connector features a 2.5mm pitch, which is the distance between the center lines of adjacent pins. This compact pitch allows for a high-density connection while maintaining a manageable footprint on the printed circuit board (PCB). The connector is available in a variety of configurations, including both straight and right-angle versions, to accommodate different layout requirements and space constraints.
The connector body is made from high-quality, flame-retardant plastic that provides excellent insulation and mechanical support. The contacts are typically made from copper alloy with a gold or tin plating to ensure optimal conductivity and resistance to corrosion. This construction enhances the connector's performance and longevity, making it suitable for use in demanding environments.
Advantages
1. High-Density Design
Compact Size: The 2.5mm pitch design allows for a high-density arrangement of contacts, making it ideal for applications where space is at a premium.
Efficient Layout: The small pitch helps in reducing the overall PCB size, leading to more compact and efficient electronic designs.
2. Reliable Performance
Durable Contacts: The use of gold or tin plating on the contacts ensures excellent electrical conductivity and long-term reliability.
Robust Construction: The connector's flame-retardant plastic body provides mechanical strength and durability, ensuring reliable performance even in challenging conditions.
3. Versatile Applications
Wide Range of Uses: The XAD-2XNA connector is suitable for various applications, including consumer electronics, automotive systems, and industrial equipment.
Flexible Configuration: With options for straight and right-angle configurations, this connector can be adapted to different design requirements and mounting preferences.
Key Features
1. Precision Engineering
High-Quality Contacts: The connector features precisely engineered contacts that ensure secure and stable connections. The gold or tin plating enhances conductivity and minimizes contact resistance.
Accurate Pitch: The 2.5mm pitch is maintained with high precision, ensuring consistent alignment and reliable mating with corresponding connectors.
2. Ease of Assembly
User-Friendly Design: The connector's design facilitates easy assembly and disassembly, reducing the time and effort required during the manufacturing process.
Secure Mating: The connector is designed to provide a secure and stable connection, preventing accidental disconnection and ensuring reliable performance.
3. Compliance and Safety
Industry Standards: The XAD-2XNA connector complies with various industry standards and regulations, ensuring its suitability for a wide range of applications.
Flame Retardancy: The use of flame-retardant materials in the connector's construction enhances safety and prevents the risk of fire in case of electrical faults.
4. Customization Options:
Pin Count Variations: The XAD-2XNA connector is available in different pin counts, allowing for customization based on the specific needs of the application. Whether a higher number of connections is required or a more streamlined design is preferred, this connector can be tailored to meet those demands.
Special Configurations: For unique application needs, the connector can be adapted with special configurations, including different mounting styles and contact layouts. This customization ensures that the connector performs optimally in a variety of settings and usage scenarios.
The XAD-2XNA (2.5mm Pitch) Connector is a high-performance, reliable solution for wire-to-board applications. Its compact 2.5mm pitch design allows for high-density connections, making it an excellent choice for space-constrained electronic designs.
