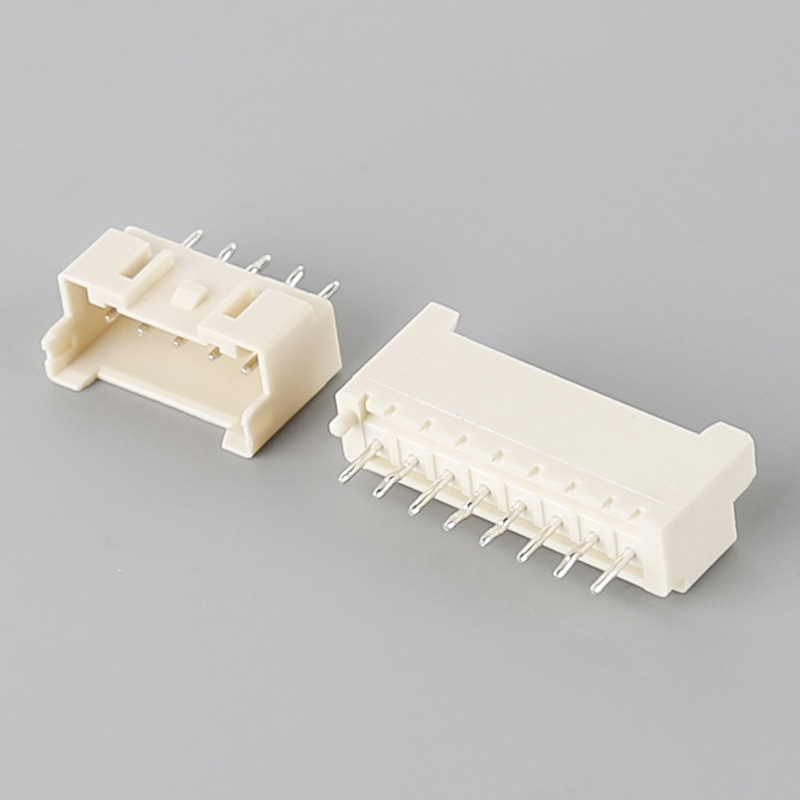

The XA (2.5mm Pitch) Connector features a 2.5mm pitch, which refers to the center-to-center spacing between the pins. This compact pitch allows for high-density mounting of connectors, making it ideal for applications where space is at a premium. The connector is engineered with precision to ensure that each pin aligns perfectly with its corresponding counterpart, enabling a secure and stable electrical connection.
The XA Connector is available in multiple configurations, including vertical and right-angle orientations, to accommodate different design requirements. It typically includes both header and receptacle components, which are designed to mate securely and provide a robust connection. The connectors are made from high-quality materials, including durable plastics and metal alloys, to ensure long-lasting performance and resistance to environmental factors such as temperature fluctuations and mechanical stress.
Advantages
1. Compact Design
Space Efficiency: With a 2.5mm pitch, the XA Connector provides a space-efficient solution for high-density applications, allowing for more compact circuit board designs.
Versatility: Its small footprint makes it suitable for a variety of electronic devices, from handheld gadgets to complex industrial systems.
2. High Durability
Robust Materials: Constructed from high-grade plastics and metals, the XA Connector is designed to withstand harsh conditions, including extreme temperatures and mechanical wear.
Long-Term Reliability: The connector's design ensures consistent electrical performance over an extended lifespan, reducing the need for frequent replacements.
3. Secure Connection
Precision Engineering: Each pin is engineered for precise alignment, ensuring a stable and secure electrical connection that minimizes the risk of signal loss or interference.
Locking Mechanism: Many XA Connectors include a locking feature to prevent accidental disconnection and ensure a reliable connection under vibration or movement.
Key Features
1. High Pin Density
2.5mm Pitch: The compact 2.5mm pitch allows for a high number of pins within a small area, supporting complex and compact electronic designs.
Custom Configurations: Available in various pin counts and orientations, the XA Connector can be customized to meet specific application needs.
2. Enhanced Electrical Performance
Low Contact Resistance: The connector's design ensures low contact resistance, which is critical for maintaining signal integrity and minimizing power loss.
High Current Rating: Designed to handle high current loads, the XA Connector is suitable for power applications as well as signal connections.
3. Easy Assembly
User-Friendly Design: The connector is designed for ease of assembly, with features that simplify the insertion and removal of pins.
Compatibility: The XA Connector is compatible with a range of board designs and can be easily integrated into existing systems.
Applications
The XA (2.5mm Pitch) Connector is used in a wide variety of applications where compact, reliable, and high-performance connectivity is required. It's used for household common applications.
